Pilot Plant of Chemical process

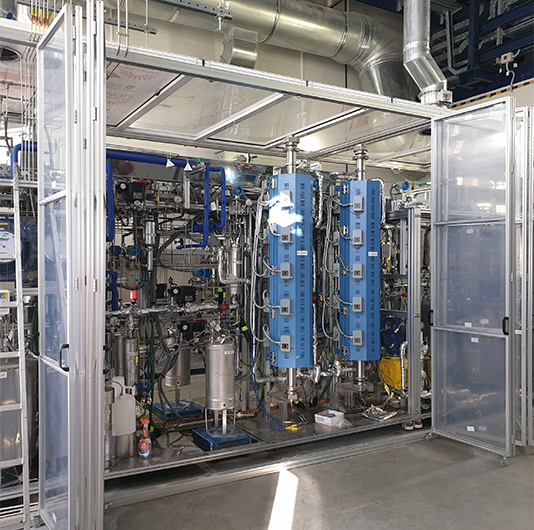

  • Hydrocracking & Hydrotreating Pilot Unit

    Raw Material H2, N2, Diesel
    Volume of Reactor 1000 cc
    Design Pressure max. 300 bar
    Design Temperature max. 450℃
    Material of Reactor STS316
    Feed Flowrate ~ 16 NL/hr.
    No. of Reactors 4
    No. of heating blocks 5

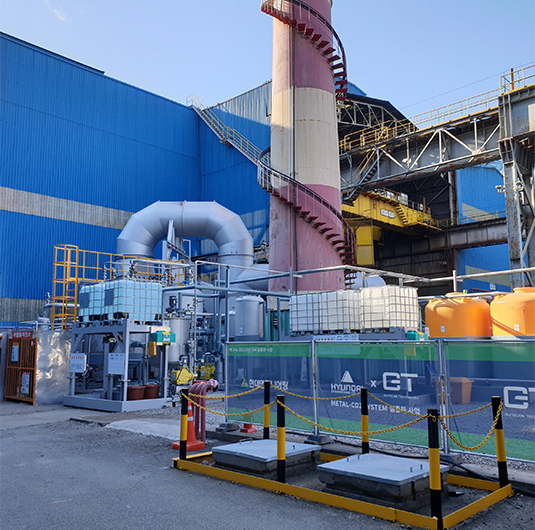

  • Metal-CO2 System Pilot Plant

    Feed Material FLUE GAS
    Volume of Reactor 250 Nm3/hr.
    Design Pressure 2 bar
    Design Temperature 350℃
    Material of Reactor STS316
    Site dimension W50,000 x L25,000mm
    Control system PLC+HMI CONTROL

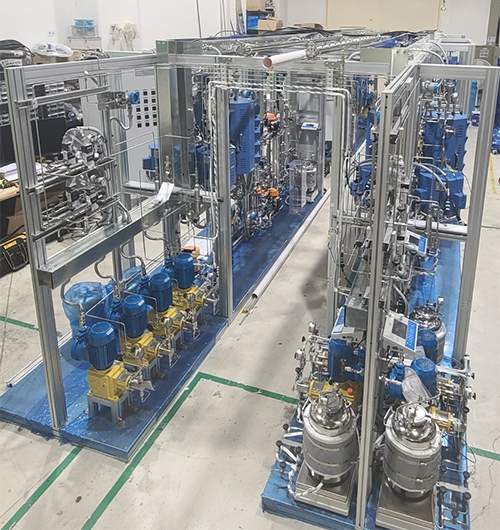

  • Hydrocracking & Hydrotreating Pilot Unit

    Raw Material H2, VOG
    Volume of Reactor 200 cc (x 4 set), 400 cc (x 4 set)
    Design Pressure 300 bar
    Design Temperature 700℃
    Material of Reactor STS310
    No. of systems 8 sets
    Total dimension W8,800 x L2800 x H2180mm
    Control system PLC+HMI CONTROL

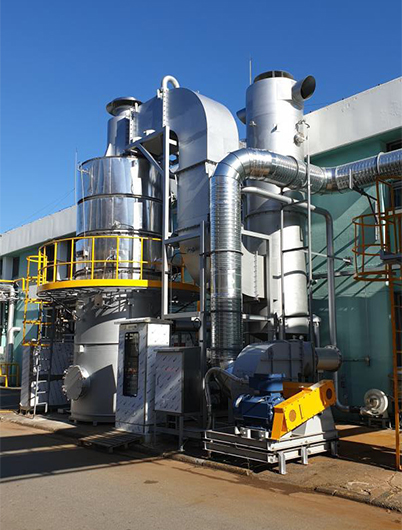

  • VOC Treatment Plant (CTO)

    Feed Material VOC GAS
    Volume of Reactor 39 m3
    Design Pressure 1 bar
    Design Temperature 900℃
    Material of Reactor STS310
    Feed Flowrate 500 m3/min.
    Combustion device Gas burner
    Control system PLC+HMI CONTROL

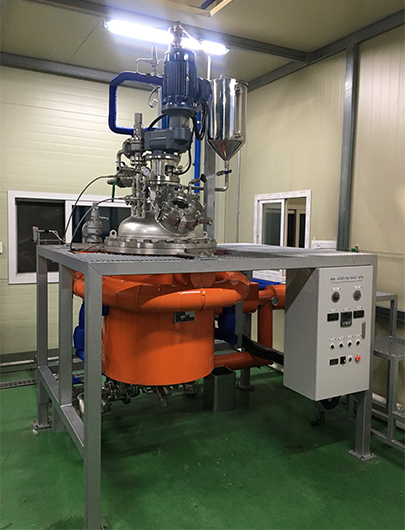

  • Polymerization Reactor System

    Raw Material Epoxy resin
    Volume of Reactor 200L
    Design Pressure 3 barg
    Design Temperature 150℃
    Material of Reactor STS316
    Fluid viscosity 200,000 cps.
    Certificates Exp. d II T4 B, KOSHA
    Control system Local Control

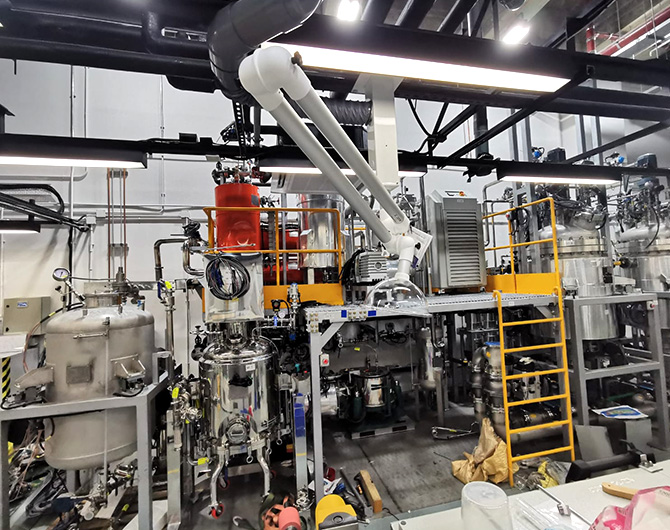

  • Biological Textile Waste Recycling System

    Raw Material Waste textile
    Volume of Reactor 500 L (x 2 set)
    Design Pressure 10 barg
    Design Temperature 200℃
    Material of Reactor STS316
    Dimension W8,000 x L2470 x H3780mm
    Certificates ASME
    Control system PLC+HMI CONTROL
