Lab-Scale Unit

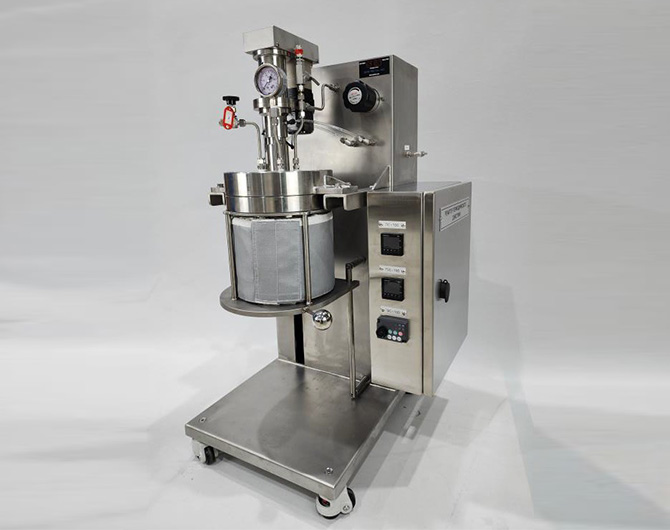

  • Autoclave System

    Volume of Reactor 2000 cc
    Design Pressure max. 200 barg
    Design Temperature max. 300℃
    Drive Speed 0 ~ 200 RPM
    Material of Reactor STS316L
    Feed Flowrate ~ 1.5 NL/hr.
    No. of Reactors 1
    Heater 600W

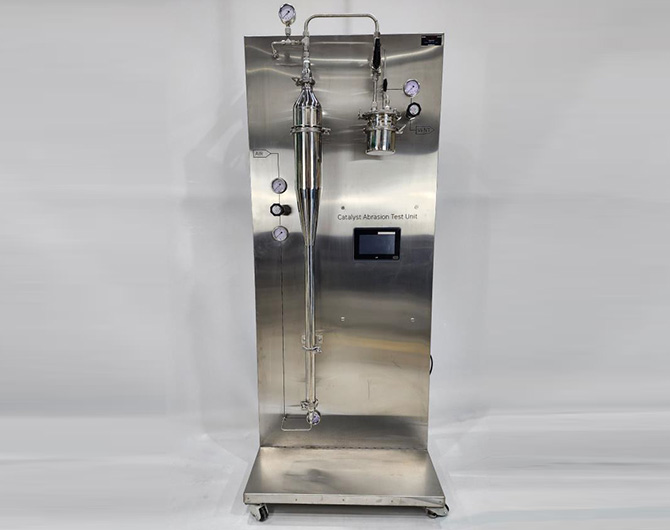

  • Catalyst Abrasion Testing Unit

    Abrasion Column Vertical Tubular Type
    Operation Pressure 8 barg
    Air Capacity > 20 lpm
    Catalyst particles dia. 10-180 µm
    Capacity > 10 lpm
    Material STS316
    Fine Collector 1 L.
    Control Monitor PLC + HMI Control

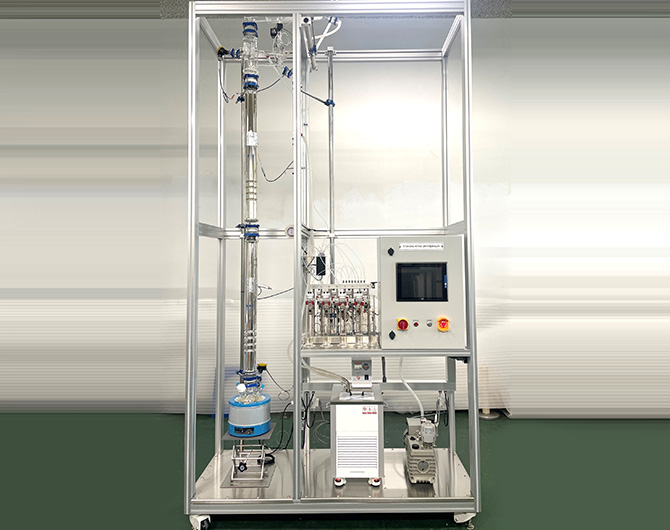

  • Precise Fractional Unit

    Raw Material Hydrocarbon oil
    Reboiler 10L
    Temp. Range 100 ~ 450℃
    Pressure Rating 0.1 ~ 760 mmHg
    Distillation Range 5 ~ 50 cc/min.
    Resolution 0.1 cc/min.
    Material Borosilicate Glass
    Sampling Unit Auto, 8 ports

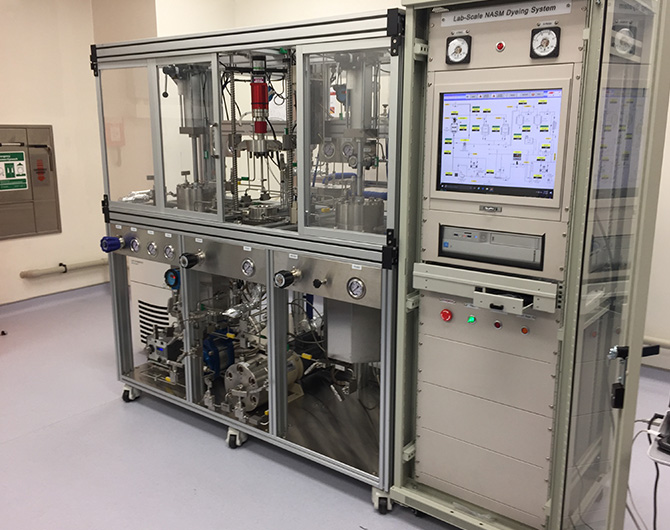

  • Lab-Scale Dyeing System

    Raw Material Dyeing textile materials
    Volume of Reactor 5 L
    Design Pressure 413 barg
    Design Temperature 210℃
    Material of Reactor STS316
    CO2 Flowrate 2~10 L/min.
    No. of reactors 2
    Control system PLC+HMI CONTROL

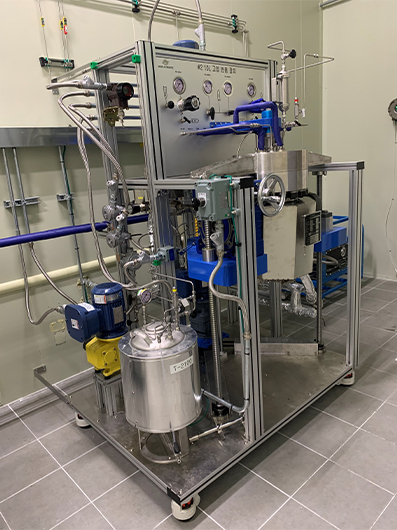

  • High Pressure Reactor Unit

    Raw Material TFE, HF
    Volume of Reactor 10 L (x 2 set)
    Design Pressure 250 barg
    Design Temperature 250℃
    Material of Reactor Hastelloy-C
    Additional equipment Vessel lifting & tilting device
    Certificates Exp. d II T4 B, KGS
    Control system PLC+HMI CONTROL

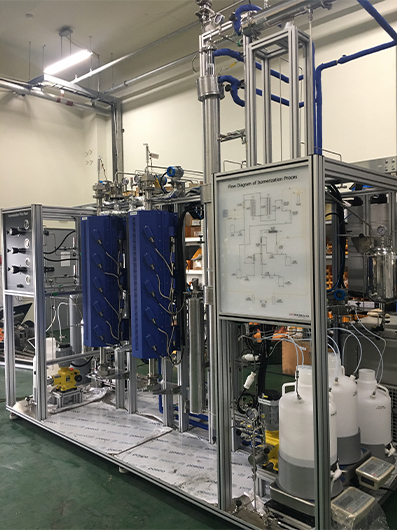

  • Isomerization Pilot Unit

    Raw Material H2, N2, Hydrocarbons
    Volume of Reactor 2000 cc
    Design Pressure max. 60 bar
    Design Temperature max. 300℃
    Material of Reactor STS316
    Feed Flowrate ~ 1.5 NL/hr.
    No. of Reactors 2
    No. of heating blocks 5 zone
